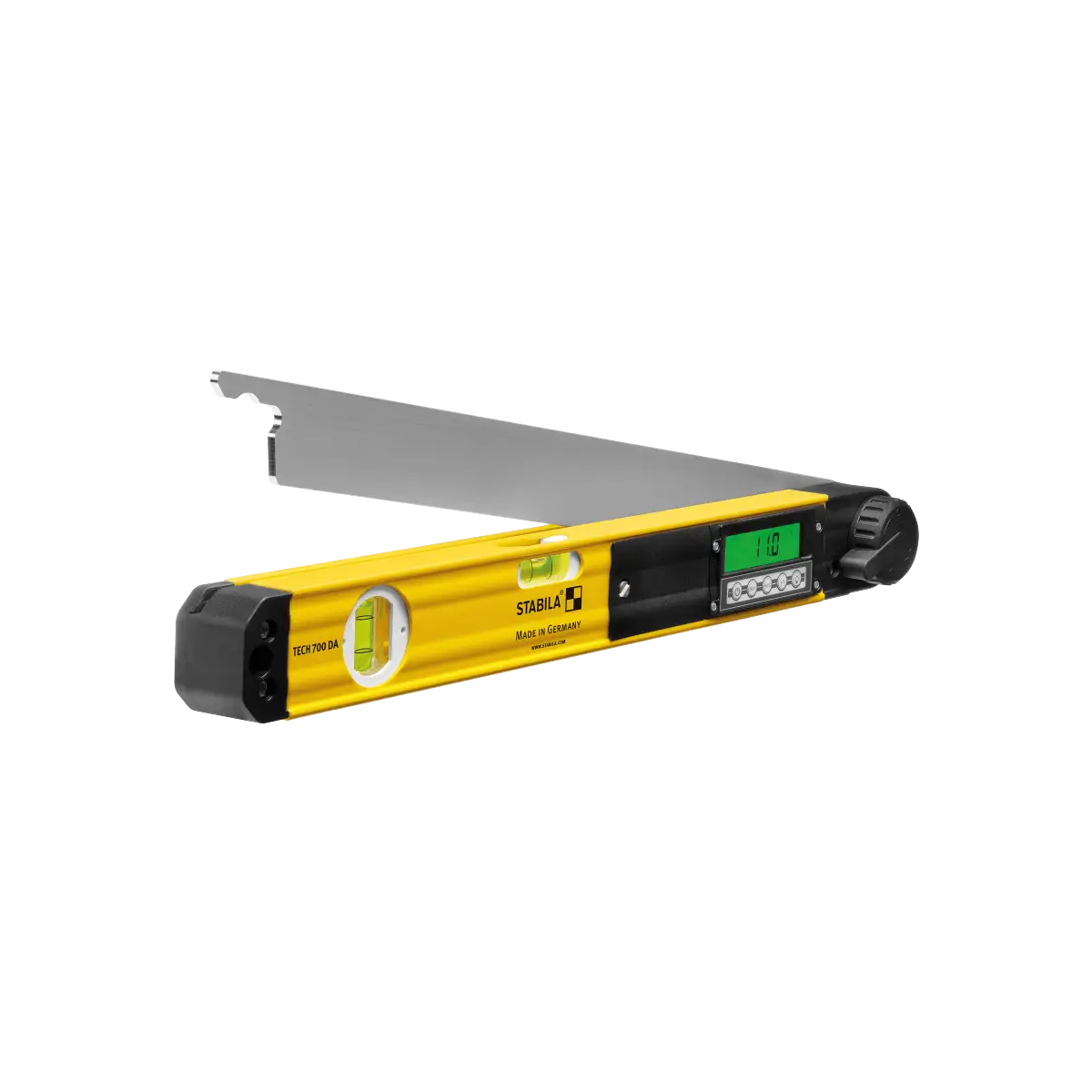

STABILA 39018 TECH 700 DA Digital Electronic Angle Finder 18″ / 45 cm

Description

STABILA 39018 TECH 700 DA Digital Electronic Angle Finder 18″ / 45 cm

Extremely versatile – the TECH 700 DA digital angle finder. A high-quality product made in Germany that perfectly combines three tools: angle finder, spirit level and bevel gauge. Calculate exact angles with the latest electronic measuring technology.

• Electronic angle finder for quickly determining and transferring interior and exterior angles in the range from 0° – 270°.
• Digital display with large digits and back-lighting that can be activated and dimmed.
• LOCK function: locking mechanism for transferring angles reliably.
• Vials which can be read easily, even when the arm is folded in.
• Two particularly wide contact edges for accurate and reliable marking of angles in all positions.
• REF function: allows a reference angle to be accepted, saved and then transferred to other components.
• HOLD function: saves the measured value – for accurate measurements and quick transferring even in hard-to-see places.
• Displays the angle bisectors at the touch of a button – ideal for quick and accurate miter cuts.
• Switches off automatically if not used for 60 minutes.
• Precise measuring results with an accuracy of ± 0.1°.
• Protection class IP 54.
• Equipment: 1 digital display, 1 horizontal vial, 1 vertical vial, 2 coated measuring surfaces.

Specifications:

• Accuracy with Electronic Angle Measurement: ±0.10°
• Measurement Accuracy in Normal Position: ±1/32 in. at 72 in.
• Measurement Accuracy in Reverse Position: ±3/64 in. at 72 in.
• Protection Rating: IP54
• Maximum Measuring Range: 270°
• Measuring Modes: °
• Number of Batteries: 2
