Name: KNIPEX 9R 400 009 9 Pc Punch and Chisel Set
Brand: simple
SKU: 9R 400 009
Availability: InStock

Description

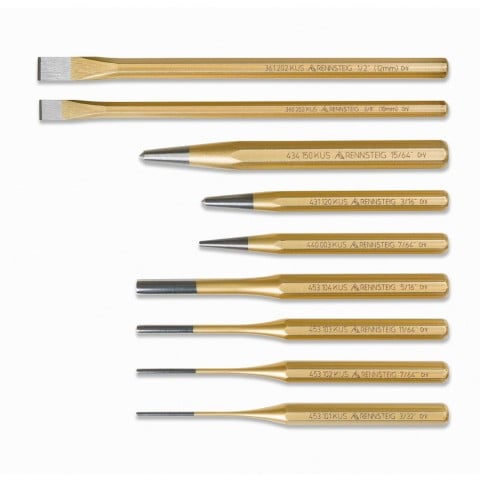

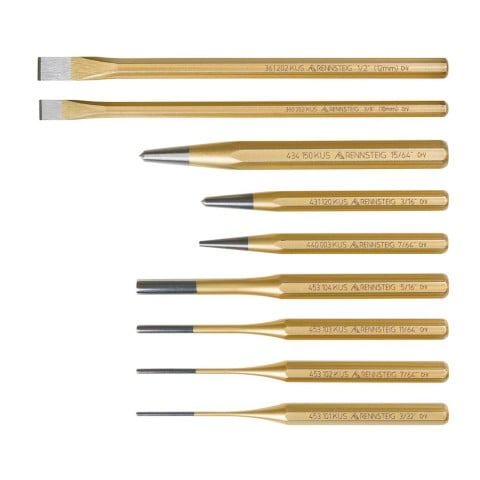

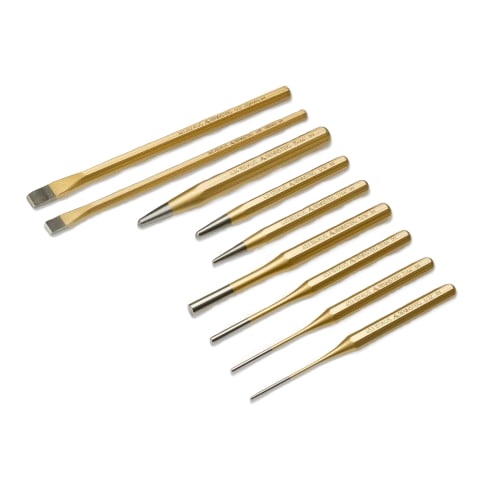

KNIPEX 9R 400 009 9 Pc Punch and Chisel Set

Where precision meets durability with every strike, the 9-Piece punch and chisel set is built to handle challenging tasks. This set includes two 8” cold chisels, three center punches and four pin punches. Perfect set for any demanding job, these tools ensure reliable and quality performance.

The octagonal shape is easier to grip when striking with a hammer and also prevents the tool from rolling away when placed on a surface
The material core design prevents mushrooming of the striking head
Tools are tempered to a hardness of 54 to 58 HRC – not just at the tip but throughout the entire length of the tool
Compiles with DIN 7255 standard
Cold Chisels – 9R 360 202 KUS (3/8″ x 8″) and 9R 361 202 KUS (1/2″ x 8)
Chisel features a hand ground sharpened edge designed to cut and shear cold metal
Striking head is turned and chamfered
Center Punches – 9R 431 120 KUS (3/16″ x 4 3/4″), 9R 434 150 KUS (15/64″ x 6″) and 9R 440 003 KUS (7/64″ x 4 3/4″)
Pin Punches – 9R 453 101 KUS (3/32″ 6″), 9R 453 102 KUS (7/64″ x 6″), 9R 453 103 KUS (11/64″ x 6″) and 9R 453 104 KUS (5/16″ x 6″)
Center punches are used to create permanent marks or locations when disassembling engine parts
For exact marking of a drill point and guidance of the drill bit
RENNSTEIG is a member of the KNIPEX Group that specializes in the design and manufacturing of high quality tools
All edges are rounded to prevent damage to the workpiece
Pin punches are used to install and drive pins out of holes

Technical Details

Part Number: 9R 400 009

UPC: 843221030483

Country of Origin: Germany

Width: 1 3/8″

Height: 1 3/8″

Weight: 1.63 lbs.

1000 Volt Insulated: No

Material Type: Chrome Vanadium Steel

Other Surface Finish: Polished tips

Tip Width: 1/2″ (9R 361 202 KUS) | 3/8″ (9R 360 202 KUS)

Color: Gold

Tip Diameter

7/64″ (9R 453 102 KUS and 5/16″ (9R 453 104 KUS)

11/64″ (9R 453 103 KUS)

3/32″ (9R 453 101 KUS)

15/64″ (9R 434 150 KUS)

3/16″ (9R 434 150 KUS)

Additional information

Weight	1 lbs
Dimensions	8 × 6 × 4 in
